Help with LCFS constraint scenario

[cyang]

I'm trying to simulate a Low Carbon Fuel Standard (LCFS) constraint and need help setting up the scenario spreadsheet properly.

Here is the equation that I'm trying to simulate.

The weighted carbon intensity for the entire transportation fuel mix has to be less than a certain target (that changes each year).  Rearranging the equation, I get this:

in the 1st summation:
The alpha is the Carbon Intensity of fuel i in year t
Q is the quantity of fuel i consumed in year t

in the 2nd summation:
Target is the target average carbon intensity for the fuel mix
EER is an efficiency multiplier for certain fuels (electricity and H2)


I've tried setting up the constraint a couple of different ways but when I check the UC Master, I'm always missing something.  I made a simple example with two fuels (fossil natural gas and bio natural gas).

This attempt was to model it after another constraint I made (ZEV mandate) which I got help with on the forum (http://forum.kanors-emr.org/showthread.php?tid=301) table { }td { padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 12pt; font-weight: 400; font-style: normal; text-decoration: none; font-family: Arial,sans-serif; vertical-align: bottom; border: medium none; white-space: nowrap; } table { }td { padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 12pt; font-weight: 400; font-style: normal; text-decoration: none; font-family: Arial,sans-serif; vertical-align: bottom; border: medium none; white-space: nowrap; }

~UC_T

UC_N

UC_ATTR~LHS

UC_ATTR~RHS

Pset_Set

Pset_PN

Pset_CI

Pset_CO

Cset_CN

Attribute

Year

LimType

UC_COMCON~RHS

UC_COMCON~LHS

UC_RHSRTS

UC_RHSRTS~0

UC_Desc

\I:

UC_LCFS_TEST3

COMCON

COMCON, SYNC

TRANGAf

2012

UP

67.7

0

15

TRANGAf

2055

67.7

TRABIONGA

2012

12.4

TRABIONGA

2055

12.4

TRANGAf, TRABIONGA

2012

95

TRANGAf, TRABIONGA

2055

33

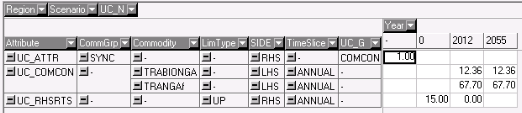

But I don't see the RHS coefficients for some reason (See picture below)


Another attempt was to model it after a renewable portfolio standard constraint using UC_FLO and UC_COMPRD. table { }td { padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 12pt; font-weight: 400; font-style: normal; text-decoration: none; font-family: Arial,sans-serif; vertical-align: bottom; border: medium none; white-space: nowrap; }

~UC_T

UC_N

Pset_Set

Pset_PN

Pset_CI

Pset_CO

Cset_CN

Attribute

Year

LimType

UC_FLO

UC_COMPRD

UC_RHSRTS

UC_RHSRTS~0

UC_COMPRD~0

UC_Desc

\I:

UC_LCFS_TEST2

TRANGAfINF, TRANGAfINF05

TRANGAf

2012

UP

67.7

0

15

TRANGAfINF, TRANGAfINF05

TRANGAf

2055

67.7

TRABIONGAINF

TRABIONGA

2012

12.4

TRABIONGAINF

TRABIONGA

2055

12.4

TRANGAf, TRABIONGA

2012

-95

TRANGAf, TRABIONGA

2055

-33

But again I was missing some coefficients (this time the UC_FLO).


Any suggestions on how to set up the constraint to get this working would be greatly appreciated.  THe examples I've shown are very simple but I need to add about 35 different types of fuels (with different carbon intensities) for the full constraint/scenario.

thanks,

Chris

[Antti-L]

Check the position of ~UC_T; shouldn't it be positioned above LimType in your examples?

[cyang]

thanks!  As usual, a simple fix but super helpful.
The data imports fine and surprisingly, the constraint worked the first time I ran it, which is always a surprise for me.
